SWITCH KHÔNG QUẢN LÝ 100M HIKVISION DS-3E0106HP-E

Thông số kỹ thuật 4 port 10/100Mbps Switch PoE + 2 port Uplink HIKVISION DS-3E0106HP-E

• 1 x 10/100M Hi- PoE port.
• 3 x 10/100M PoE port.
• 2 x 10/100M Uplink Port.
• Tiêu chuẩn PoE: 802.3af, 802.3at, 802.3bt
• Công suất PoE tối đa: 65W
• Tích hợp công nghệ PoE Extend (tối đa 300m)
• Nguồn điện: 48VDC.
• Kích thước: 105×27.6×83.1mm.
• Trọng lượng: 200g.

• Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-i



Model	DS-3E0106HP-E
PoE Power Supply
PoE Standard	Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
PoE Power Pin	Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously
PoE Port	Ports 1 to 4
Max. Port Power	Port 1: 60 W Ports 2 to 4: 30 W
PoE Power Pudget	60 W
Max. Power Consumption	65 W
Port Number	1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports
Port Type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode	Store-and-forward switching
Working Mode	Standard mode (default); Extend mode
High Priority Ports	Ports 1 to 2
Ports For Long-Distance Transmission	Ports 1 to 4
MAC Address Table	2 K
Switching Capacity	1.2 Gbps
Packet Forwarding Rate	0.893 Mpps
Internal Cache	768 Kbits
General
Shell	Metal material, fan-free design

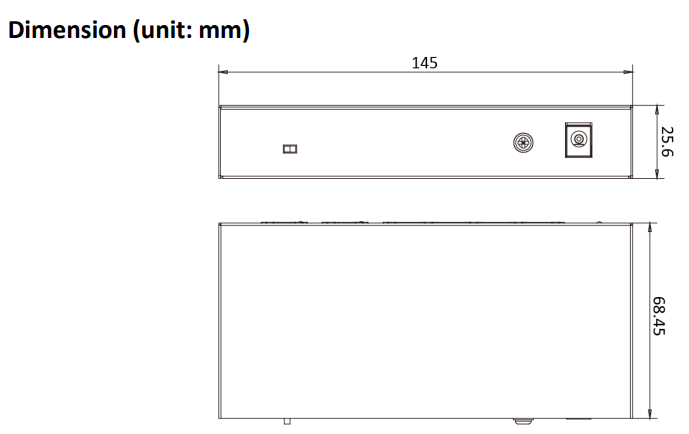

Dimension	145 mm × 25.6 mm × 68.45 mm
Gross Weight	0.77 kg (1.70 lb)
Net Weight	0.24 kg (0.53 lb)
