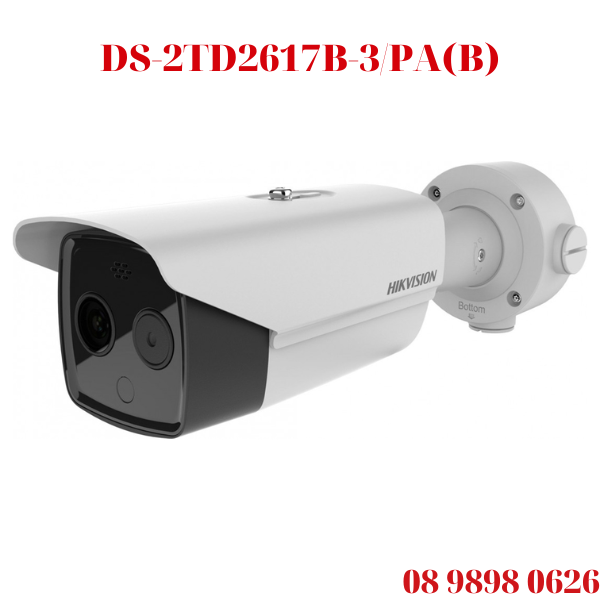

Camera nhiệt Hikvision DS-2TD2617B-3/PA(B)

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• Max. Resolution 160 × 120 (the resolution of output image is 320 × 240)
• Pixel Interval 17μm
• Response Waveband 8 μm to 14 μm
• NETD (Noise Equivalent
• Temperature Difference)
• ≤ 40 mk (@25 °C,F# = 1.1)
• Lens (Focal Length) 3.1 mm
• IFOV 5.48 mrad
• Field of View 50° × 37.2° (H × V)
• Min. Focusing Distance 0.2 m
• Aperture F 1.1



Optical Module



• Max. Image Resolution 2688 × 1520
• Image Sensor 1/2.7" Progressive Scan CMOS
• Min. Illumination Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
• Shutter Speed 1 s to 1/100,000 s
• Lens (Focal Length) 4 mm
• Field of View 84° × 44.8° (H × V)
• WDR 120 dB
• Day & Night IR cut filter with auto switch



Image Function



• Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
• Picture in Picture
• Combines details of thermal and optical image PIP, overlay thermal image on optical
• image



Smart Function



• VCA (Video Content Analysis)
• 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8
• VCA rules in total.
• Temperature Measurement
• 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
• line).
• Temperature Range -20 °C to + 150 °C (-4 °F to + 302°F)
• Temperature Accuracy ± 8 °C (± 14.4 °F)
• Fire Detection Dynamic fire point detection, up to 10 fire points detectable.
• Infrared
• IR Distance Up to 40 m
• IR Intensity and Angle Automatically adjusted



Network

Main Stream



• Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720)
• Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
• Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240



Sub-stream



• Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
• Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
• Thermal: 704 × 576, 352 × 288, 320 × 240
• Video Compression H.265/H.264/MJPEG
• Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM



Protocols



• IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
• RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Simultaneous Live View Up to 20
• User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
• Security Measures
• User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x
• access control, IP address filtering



Integration



• Alarm Input 2-ch inputs (0-5 VDC)
• Alarm Output 2-ch relay outputs, alarm response actions configurable
• Alarm Action
• SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white
• light alarm



Audio Input



• 1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ
• ± 10%
• Audio Output Linear level, impedance: 600 Ω
• Reset 1, Reset Button
• Communication Interface 1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface
• SD Memory Card
• Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128 GB)
• Supports manual/alarm recording
• Analog Video Output 1.0 V [p-p]/75 Ω, PAL/NTSC
• Application Programming Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform
• Client iVMS-4200, Hik-Connect
• Web Browser IE9+, Chrome 31-44, Firefox 30-51, Safari 5.02+(mac)



General



• Menu language
• 32 languages
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
• French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
• Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
• Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)



Power



• 12 VDC ± 20%, two-core terminal block
• PoE (802.3af, class 3)
• Power Consumption
• 12 VDC ± 20%: 0.65 A, max. 7.5 W
• PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W
• Working Temperature/Humidity
• Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
• Humidity: 95% or less
• Protection Level
• IP66 Standard
• TVS 6000V lightning protection, surge protection, voltage transient protection
• Dimensions 358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
• Weight Approx. 1.76 kg (3.88 lb)
