CAMERA IP THÂN NGOÀI TRỜI QUAY QUÉT 4MP CÓ HỖ TRỢ MIC THU ÂM VÀ KHE CẮM THẺ NHỚ HIKVISION DS-2CD1P43G2-IUF

Camera IP Hikvision ngoài trời 4MP DS-2CD1P43G2-IUF có thể quay quét có thể xoay ngang dọc, hỗ đèn sáng có khe cắm thẻ nhớ lưu trữ và có thể ghi âm

CAMERA IP THÂN NGOÀI TRỜI QUAY QUÉT 4MP CÓ HỖ TRỢ MIC THU ÂM VÀ KHE CẮM THẺ NHỚ HIKVISION DS-2CD1P43G2-IUF

  • Mã SP:DS-2CD1P43G2-IUF
  • Giá gốc:4,230,000 vnđ
  • Giá bán:2,749,000 vnđ Đặt mua

Thông số kỹ thuật camera IP Hikvision quay quét 4MP DS-2CD1P43G2-IUF



  • Camera thân quay quét 4MP
  • Ống kính cố định 4 mm
  • H.264/H.265/H.265+
  • Xoay ngang, dọc
  • Chống ngược sáng thực 120dB WDR
  • BLC, HLC, 3D DNR
  • Hỗ trợ 1 microphone thu âm
  • Hỗ trợ khe cắm thẻ nhớ
  • Hỗ trợ đèn trợ sáng
  • Hồng ngoại lên đến 30m



Camera
Image Sensor  1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: -100° to 100°, tilt: -20° to 45°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 109°, vertical FOV 60°, diagonal FOV 129° 4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 103°
Lens Mount M12
Iris Type Fixed
Aperture Max. F2.0
DORI
DORI 2.8 mm: D: 40 m, O: 16 m, R: 8 m, I: 4 m 4 mm: D: 55 m, O: 21 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type -U: Mono sound
Environment Noise Filtering -U: Yes
Audio Sampling Rate -U: 8 kHz/16 kHz
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G (only -F model supports), Profile T), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users 3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browse
Privacy Mask 4 regions of privacy mask
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone -U: Yes
Reset Key -F: Yes
Event
Basic Event Motion detection, video tampering alarm, exception
Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
General
Power 12 VDC ± 25%, 1.00 A, max. 12 W, Ø 5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12.5 W
Material Front cover: metal, body: plastic, bracket: plastic
Dimension 197.1 mm × 105 mm × 225.4 mm (7.8" × 4.1" × 8.9")
Package Dimension 300 mm × 266 mm × 172 mm (11.8" × 10.4" × 6.8")
Weight Approx. 900 g (2.0 lb.)
With Package Weight Approx. 1520 g (3.3 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-banding, heartbeat, password protection, password reset via email
Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 KC: KN32: 2015, KN35: 2015, FCC: 47 CFR Part 15, Subpart B
Safety UL: UL 62368-1 CB: IEC 62368-1: 2014 + A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Protection IP66: IEC 60529-2013

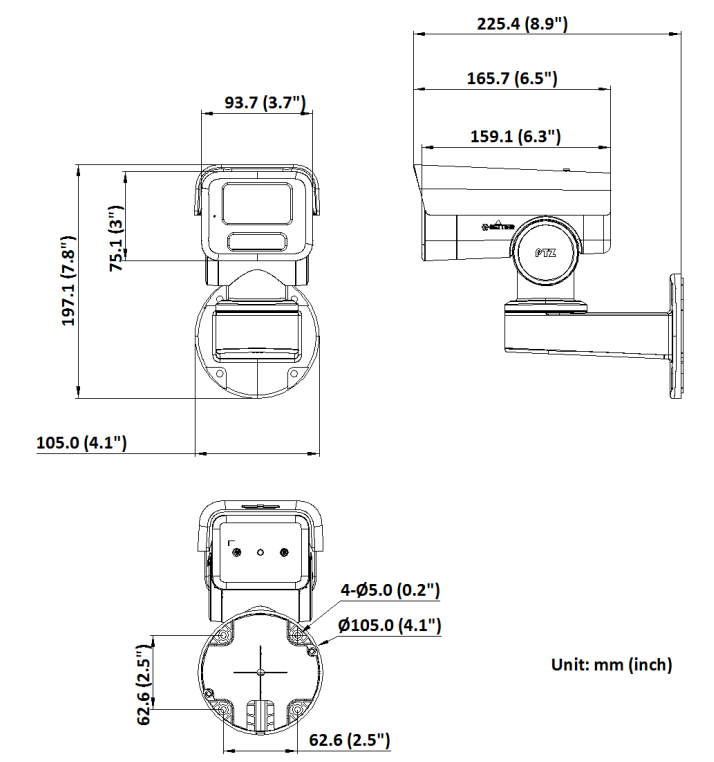

Kích thước sản phẩm DS-2CD1P43G2-IUF
